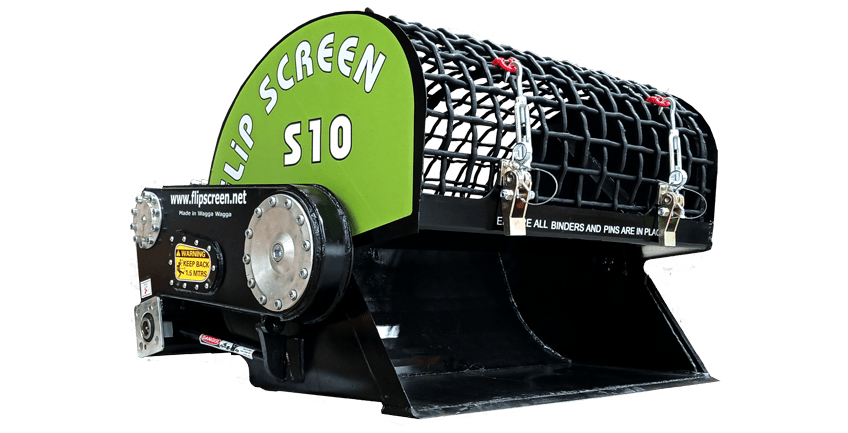

FLIPSCREEN S10
SUITABLE FOR BACKHOE MACHINERY
Elevate your material handling efficiency with the S10 Flip Screen Screening Bucket. Although this model attachment is the smallest of the flipscreen range no exception has been made for its design or level of robust performance and versatility. This high-quality attachment fits seamlessly to smaller sized Skid Steers, transforming machine into powerful on-site screening unit.
Featuring an extremely durable high tensile screen, the S10 efficiently separates any fine materials from larger debris with ease.
Perfect for construction, demolition, and landscaping or any operation / site where larger machinery has limited access.
The S10 Flip Screen offers reliable performance for screening any material – from soil and gravel to demolition waste and metal recycling scrap. Streamline your smaller operations and enhance productivity with the S10 Flip Screen Screening Bucket.
| BUCKET OPENING | 892mm x 256mm | 35″ x 10″ |
|---|---|---|
| SCOOP SIZE | 0.1 m³ | 0.13 yd³ |
| TOTAL CAPACITY | 0.3 m³ | 0.39 yd³ |
| SCREEN AREA | 0.9 m² | 9.7 ft² |
| RECOMMENDED CARRIER | 1.5T | BACKHOE, SKID STEER, TELEHANDLER |
FLIPSCREEN S30
SUITABLE FOR BACKHOE MACHINERY
Elevate your Backhoe’s performance with the S30 Flip Screen Screening Bucket. Its high tensile steel screens and high torque drives are engineered for demanding environments such as, excavation and demolition projects. It efficiently sorts materials like rip-rock, demolition rubble and top-soil, making it indispensable for both commercial and municipal operations.
The S30 combines cutting-edge innovation with exceptional efficiency, providing reliable material processing and seamless integration with your Backhoe for an array of industrial applications.
| BUCKET OPENING | 1600mm x 330mm | 63″ x 13″ |
|---|---|---|
| SCOOP SIZE | 0.3 m³ | 0.39 yd³ |
| TOTAL CAPACITY | 0.9 m³ | 1.17 yd³ |
| SCREEN AREA | 2.1 m² | 22.6 ft² |
FLIPSCREEN S45
SUITABLE FOR BACKHOE MACHINERY
Maximise your material processing capabilities with the S45 Flip Screen Screening Bucket. Designed for heavy-duty performance, the S45 transforms Backhoe Machines into powerful and portable screening units. Ideal for larger-scale operations and projects. The S45 features FlipScreens highly effective Smart Valve system to pair perfectly with your auxillery hydralics to provide smooth and safe running pressures and increase precise operation.
The S45’s rugged construction ensures durability and longevity under any demanding conditions and is capable of handling substantial volumes of material.
The S45 Flip Screen enhances productivity and streamlines your workflow taking your machine to new levels of performance and reliability in on site material screening.
| BUCKET OPENING | 1858mm x 412mm | 73″ x 16.25″ |
|---|---|---|
| SCOOP SIZE | 0.45 m³ | 0.59 yd³ |
| TOTAL CAPACITY | 1.35 m³ | 1.77 yd³ |
| SCREEN AREA | 3.2 m² | 34.4 ft² |
FLIPSCREEN BL65
SUITABLE FOR BACKHOE MACHINERY
Upgrade your large Backhoe with the BL65 Flip Screen Screening Bucket, designed for high-capacity performance in industries like road construction, aggregate processing, and demolition. Featuring durable steel screens and the Smart Valve System, it efficiently handles heavy-duty materials such as construction debris and bulk aggregates, ideal for extensive construction and recycling projects.
The BL65 offers robust construction and versatility, enhancing your Backhoes’s capability to tackle large-scale material sorting with remarkable efficiency and performance.
| BUCKET OPENING | 2075mm x 440mm | 81″ x 17″ |
|---|---|---|
| SCOOP SIZE | 0.65 m³ | 0.85 yd³ |
| TOTAL CAPACITY | 2.22 m³ | 2.9 yd³ |
| SCREEN AREA | 4.1 m² | 44 ft² |
FLIPSCREEN BL80
SUITABLE FOR BACKHOE MACHINERY
Boost your Backhoe’s capabilities with the BL80 Flip Screen Screening Bucket, perfect for small-scale mining, quarrying, and waste management projects. Its sturdy steel screens and Smart Valve System handle the separation of heavy materials such as ore, concrete rubble, and industrial waste, ensuring optimal performance in rigorous environments.
The BL80 sets the standard for high-capacity material handling, providing unmatched reliability and performance while seamlessly integrating with your Backhoe for demanding industrial operations.
| BUCKET OPENING | 2130mm x 560mm | 84″ x 22″ |
|---|---|---|
| SCOOP SIZE | 0.1 m³ | 0.13 yd³ |
| TOTAL CAPACITY | 2.4 m³ | 3 yd³ |
| SCREEN AREA | 4.6 m² | 49.5 ft² |
FLIPSCREEN WL130
SUITABLE FOR BACKHOE MACHINERY
Transform your Backhoe with the WL130 Flip Screen Screening Bucket, ideal for applications in mining, quarrying, and environmental management. Equipped with un-breakable steel screens and the Smart Valve System, this attachment processes materials like soil, mined aggregates, scrap metal and construction debris, making it suitable for various industrial and reclamation projects.
The WL130 delivers superior performance and easy integration, enhancing your Backhoe’s versatility for handling diverse materials in mining and quarrying tasks.
| BUCKET OPENING | 2140mm x 656mm | 84.25″ x 26″ |
|---|---|---|
| SCOOP SIZE | 1.3 m³ | 1.7 yd³ |
| TOTAL CAPACITY | 3.9 m³ | 5.1 yd³ |
| SCREEN AREA | 5.7 m² | 61.4 ft² |
FLIPSCREEN E20
SUITABLE FOR BACKHOE MACHINERY
Enhance your Backhoe with the E20 Flip Screen Screening Bucket, ideal for site works, quarry maintenance, cleaning up around conveyer system. it effectively processes materials such as topsoil, debris, and small aggregates, making it perfect for residential and light commercial applications.
The E20 delivers outstanding efficiency and adaptability, seamlessly integrating with your compact Backhoe to excel in various small-scale material processing tasks.
| BUCKET OPENING | 2130mm x 560mm | 84″ x 22″ |
|---|---|---|
| SCOOP SIZE | 0.1 m³ | 0.13 yd³ |
| TOTAL CAPACITY | 2.4 m³ | 3 yd³ |
| SCREEN AREA | 4.6 m² | 49.5 ft² |
FLIPSCREEN E30
SUITABLE FOR BACKHOE MACHINERY
The E30 Flip Screen Screening Bucket is designed for medium-sized excavators, suitable for small scale mining, reclamation, and site preparation. Featuring durable steel screens, it efficiently sorts materials such as gravel, compost, and construction waste, ensuring effective performance across diverse projects.
The E30 combines robust design with easy integration, offering a plug and play truly potable screener offering exceptional performance and versatility for medium-scale excavation and material handling tasks.
| BUCKET OPENING | 2140mm x 656mm | 84.25″ x 26″ |
|---|---|---|
| SCOOP SIZE | 1.3 m³ | 1.7 yd³ |
| TOTAL CAPACITY | 3.9 m³ | 5.1 yd³ |
| SCREEN AREA | 5.7 m² | 61.4 ft² |
