The BL80 suits carriers from 8 to 12 tons and has a max volume of 2.4m³/3.14yd³.
| BL80 Specification | ||
| Minimum Static Tipping Load = 5314kg (11715lbs)based on 1.6t/m3 | ||
| Bucket Opening | mm | 2130 x 560 |
| inches | 84 x 22 | |

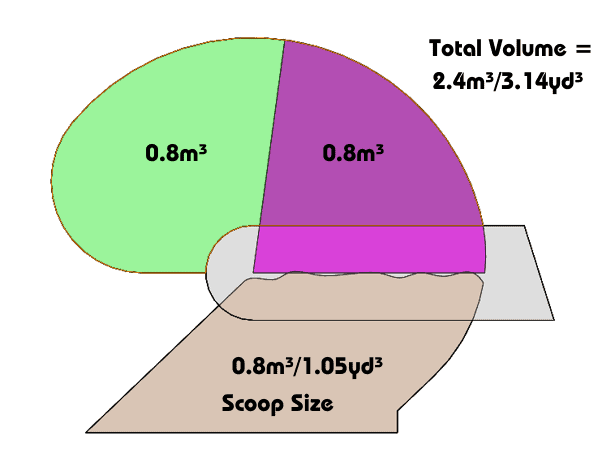

| Scoop Size | m³ | 0.8 |
| yd³ | 1 | |
| Total Volume | m³ | 2.4 |
| yd³ | 3 | |
| Weight | kg | 1210 |
| lbs | 2668 | |
| Height | 54″ | 138cm |
| Width | 99″ | 251cm |
| Length | 67″ | 170cm |
| Flow | L/min | 85 |
| G/min | 18.7 | |
| Pressure | bar | 120 |
| psi | 1740 | |
| Hydraulic Fitting | Inlet & Outlet Thread | 1-3/16″-12 ORFS Male |
| Case Drain Thread | NA | |
| Screen Area | m² | 4.6 |
| ft² | 49.5 | |
| Carrier Size | Min 8t | Max 12t |
| Estimated screening rate of topsoil and rock with a 2″/50mm mesh: 120yd³/96m³ per hour. | ||
| Mesh Size and weight | ||
| Size | 2060 x 2410 | |
| Apeture | Wire diameter | Weight Kg |
| 6.3 | 3.15 | 74.3 |
| 10 | 4 | 79.8 |
| 13 | 4 | 66.1 |
| 18 | 6 | 96.4 |
| 25 | 7.1 | 100.7 |
| 35 | 8 | 96 |
| 50 | 11.2 | 131.4 |
| 75 | 12 | 106.4 |
